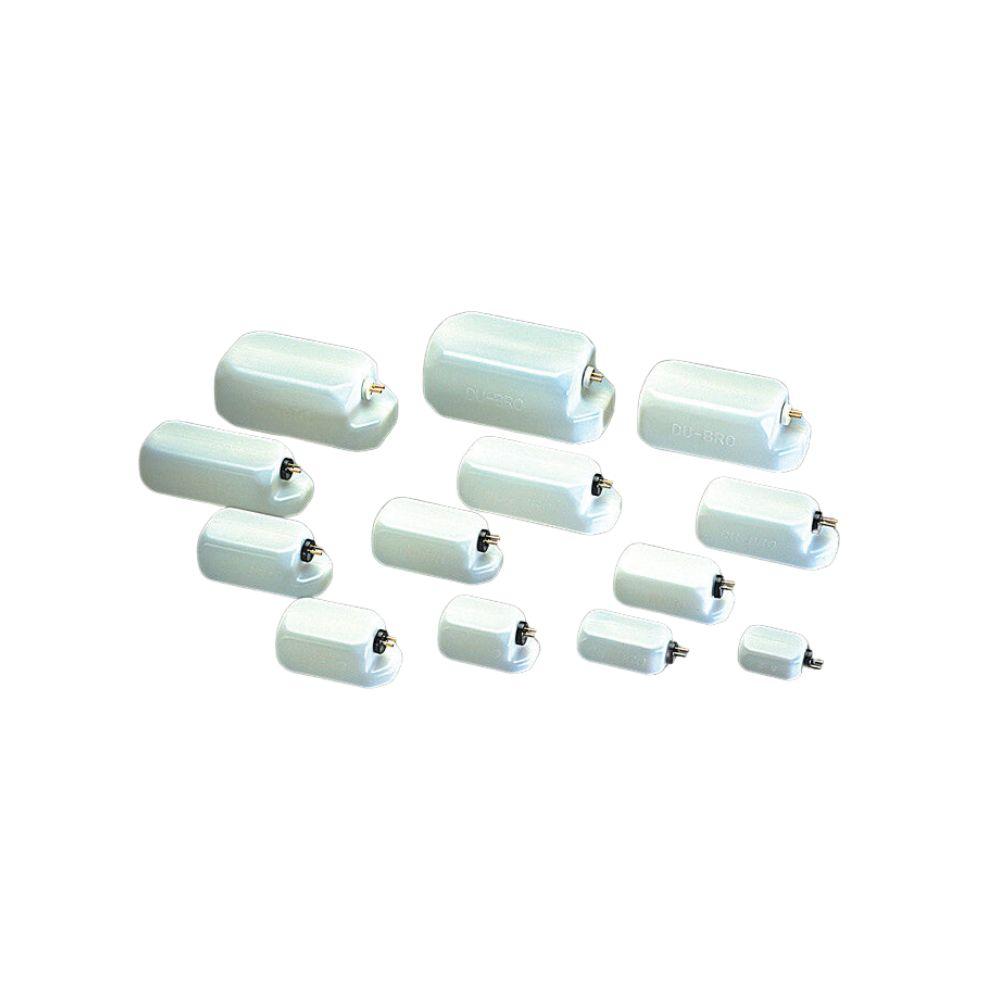

Du-Bro Fuel Tanks are designed to be tough! Our fuel tanks will not split or crack from vibration or pressure. In fact, our fuel tanks can be used with pressurized fuel systems! Comes complete with all hardware, including our one piece clunk with fuel barbs built right on the clunk stem. Your fuel tubing will not slide off! Du-Bro Fuel Tanks can be used with either glo-fuel or gasoline if you purchase our catalog #400 Gasoline Conversion Stopper. Note: #690-692 come with both tubing and fuel stopper for gas and glo fuel. # 795-797 are set up for gas only. Made in USA
SIZE HEIGHT WIDTH LENGTH WEIGHT
2 oz
1 5/16" (33.34 mm) H
1 13/16" (46.04 mm) W 2 3/4" (69.85 mm) L (34 grams)
4 oz
1 1/2" (38.1 mm) H
2 1/16" (52.39 mm) W 3 3/4" (95.25mm) L (41 grams)
6 oz
1 7/8" (47.63 mm) H
2 3/16" (55.56 mm) W 3 7/8" (98.43 mm) L (56 grams)
8 oz
1 15/16" (49.21 mm) H
2 5/16" (58.74 mm) W 4 7/8" (123.83 mm) L (64 grams)
10 oz
2 1/4" (57.15 mm) H
2 9/16" (65.09 mm) W 4 7/8" (123.83 mm) L (66 grams)
12 oz
2 1/4" (57.15 mm) H
2 9/16" (65.09 mm) W 5 3/8" (136.53 mm) L (68 grams)
14 oz
2 3/8" (60.33 mm) H
2 11/16" (68.26 mm) W 5 3/8" (136.53 mm) L (72 grams)
16 oz
2 3/8" (60.33 mm) H
2 11/16" (68.26 mm) W 5 7/8" (149.23 mm) L (77 grams)
20 oz
2 1/2" (63.5 mm) H
3 1/16" (77.79 mm) W 7" (177.8 mm) L (96 grams)
24 oz
2 1/2" (63.5 mm) H
3 1/16" (77.79 mm) W 7 1/2" (190.5 mm) L (100 grams)
32 oz
3" (76.2 mm) H
3 11/16" (93.66 mm) W 7 3/4" (196.85 mm) L (160 grams)
40 oz
3 1/4" (82.55 mm) H
4" (101.6 mm) W 8" (203.2 mm) L (178 grams)
50 oz
3 1/2" (88.9 mm) H
4 3/8" (111.13 mm) W 8 3/8" (212.73 mm) L (186 grams)
60 oz
@6 P.S.I.
3 5/8" (92.075 mm) H
4.46" (113.28 mm) H
4 1/2" (114.3 mm) W
5.090" (129.29 mm) W
8 5/8" (219.08 mm) L
8.805" (223.65 mm) L (182 grams)
80 oz
@6 P.S.I.
3 5/8" (92.075 mm) H
4.705" (119.51 mm) H
4.812" (122.2 mm) W
5.27" (133.86 mm) W
10.5" (266.7 mm) L
10.755" (273 mm) L
(225 grams)
100 oz
@6 P.S.I.
3 5/8" (92.075 mm) H
4.99" (126.75 mm) H
5 1/4" (133.35 mm) W
5.70" (144.78 mm) W
11 5/8" (295.2 mm) L
12.035" (305.7 mm) L
(240 grams)
