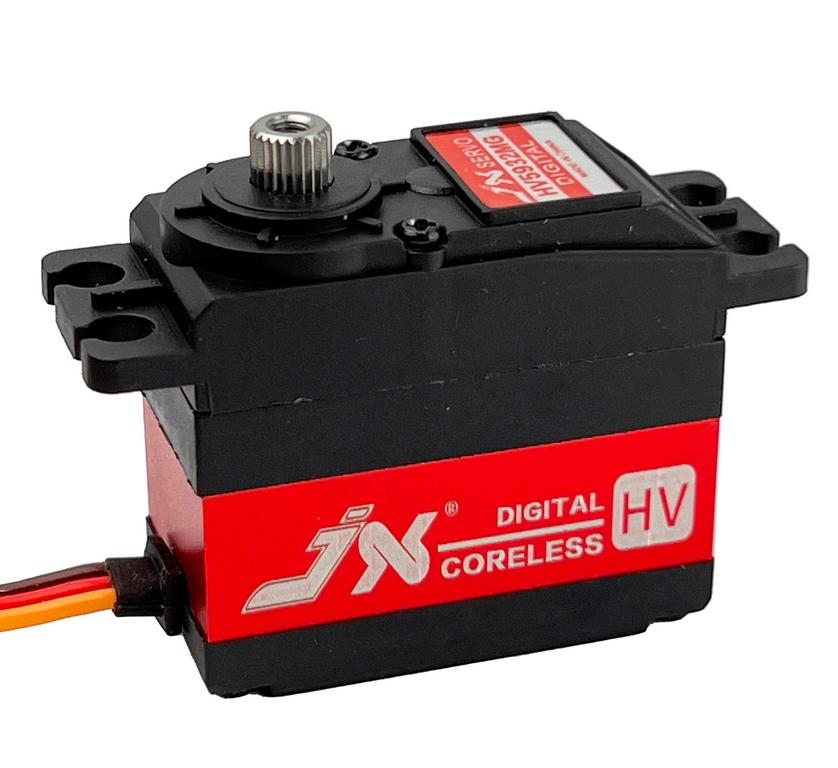

JX Servo 32.3Kg .10 sec 8.4V MG 2BB 59.3g 40.5x20.5x36.5 Hi Torque

JX Servo 32.3Kg .10 sec 8.4V MG 2BB 59.3g 40.5x20.5x36.5 Hi Torque

By JX SERVO
$73.95
SKU JX5932

PDI-HV5932MG 32KG High Precision Metal Gear High Voltage Digital Coreless Standard Servo

FEATURE:
-- High performance digital high voltage coreless standard servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- Dual ball bearings
-- CNC aluminium middle hull

SPECIFICATIONS:
Dead band: 1μs    1520μs / 330hz
Motor: coreless motor
Operating Speed (6.0V): 0.12sec/60°
Operating Speed (8.4V): 0.1sec/60°
Stall Torque (6.0V): 25.2 kg.cm (239.55oz/in)
Stall Torque (8.4V): 32.3 kg-cm (281.89 oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight:  59.3g (2.09oz)
Connector Wire Length: JR  265 mm (10.43in)
Bearing: 2BB
